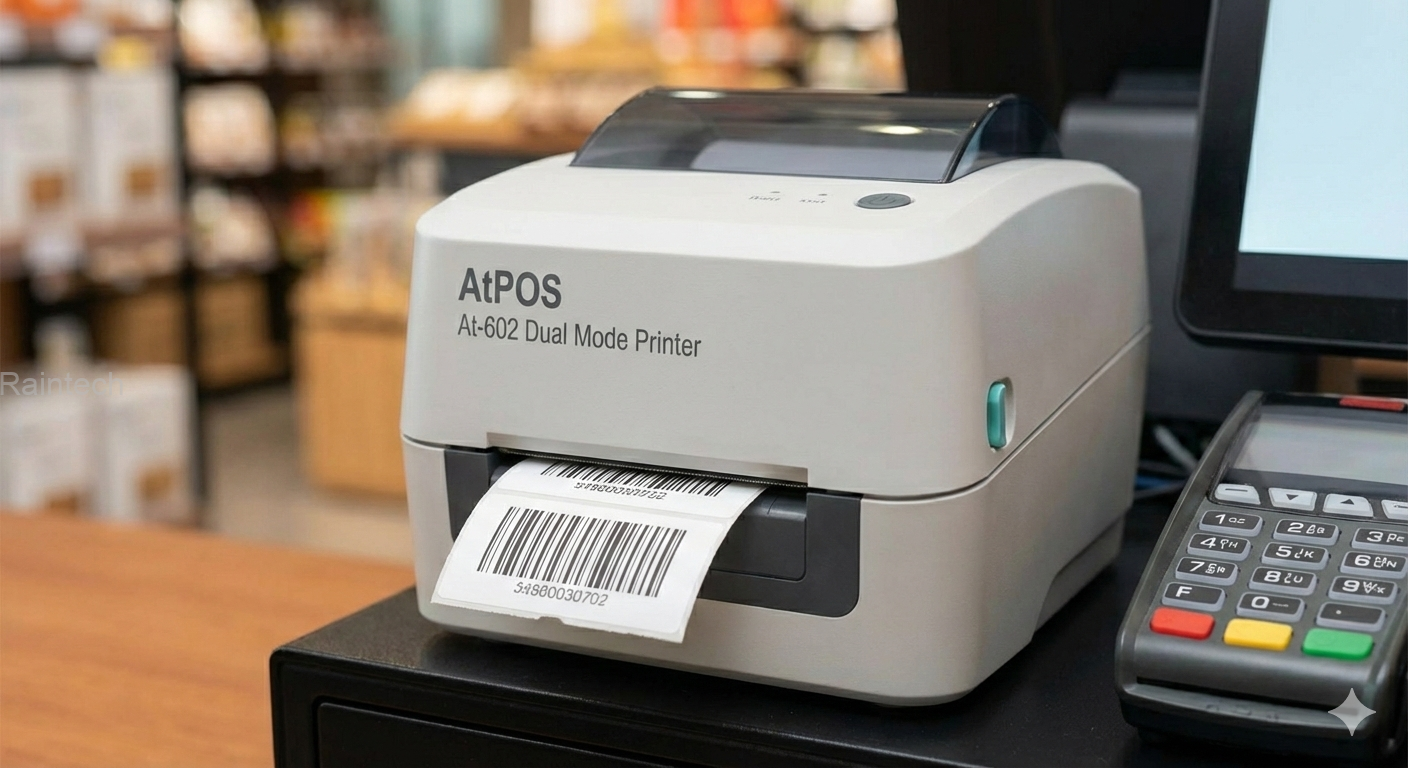

AtPOS At-602 Barcode Dual mode Printer
A dual mode printer like the AT-602 can print two different kinds of output from one device:
-
Thermal receipts (e.g., bills, sales invoices)
-
Thermal barcode label stickers (e.g., product labels, price tags)
This means you don’t need separate machines for receipts and labels — it handles both formats with the same printer mechanism.
🖨️ Key Features
🔧 Printing Capabilities
-
Printing method: Direct thermal line printing — no ink or toner needed.
-
Print width: ~72 mm (suitable for standard 80 mm paper rolls).
-
Resolution: 203 dpi (dots/inch) for sharp text and clear barcodes.
-
Print speed: Up to approx. 152 mm/sec — fast enough for busy counters.
🔗 Connectivity
-
USB & Bluetooth interfaces:
— Connect via USB to a POS terminal or PC.
— Bluetooth allows mobile printing from phones/tablets if supported.
📊 Barcode & Fonts Supported
Supports a wide range of:
-
1D barcodes: CODE128, EAN13, CODE39, etc.
-
2D codes: QR Code, PDF417, Data Matrix
This ensures compatibility with most retail and inventory applications.
Fonts include basic scalable text options and user-defined fonts.
🛠️ Technical & Physical Specs
-
Memory: 2 MB buffer + 2 MB flash.
-
Paper width support: Adjustable from ~20 mm up to ~80 mm — useful for different label sizes.
-
No automatic cutter: Manual tear only.
-
Print head life: ~100 km of printed length (estimate based on typical usage).
-
Power: AC 110–220 V, outputs DC 24 V @ 2.5 A.
-
Physical size: ~195 × 148 × 148 mm; ~1.1 kg.
💼 Compatibility
Drivers are available for major operating systems like Windows and Linux, and the printer uses common print languages:
-
ESC/POS mode for receipt printing
-
TSPL for label printing
Many POS and billing software solutions support these standards.
🏪 Typical Uses
This type of printer is suitable for:
-
Retail outlets & grocery stores — receipts + price labels
-
Restaurants and cafes — order receipts + table labels
-
Warehouses — barcode labels for inventory
-
Mobile businesses (with Bluetooth for phone/tablet printing)
